V9 Series High Performance Universal Speed AC Drive
As the AC Drive manufacturer in china, V&T has rich experience in electric drive fields. V&T V9−H Series General Purpose Inverter is a high-performance vector control and torque controlled frequency drive. Vector control technology and torque control technology are employed. It can better meet the needs of various transmission applications.Voltage range covers 200V, 400V, 690V, and 1140V. The product power range covers 0.4kW to 3MW.
- Advanced high-performance motor control algorithms
- Supporting multiple types of motors

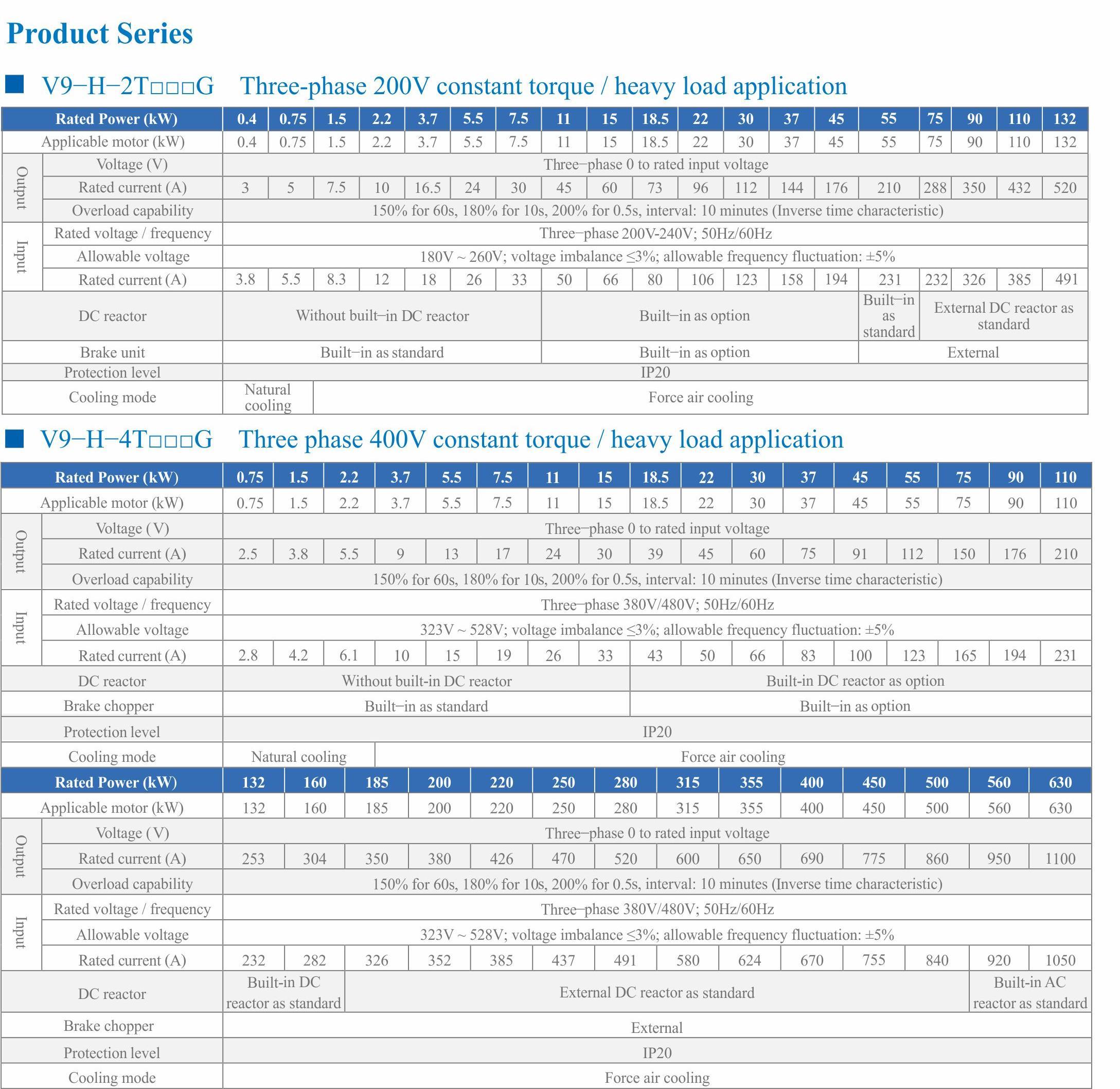

- A complete product range

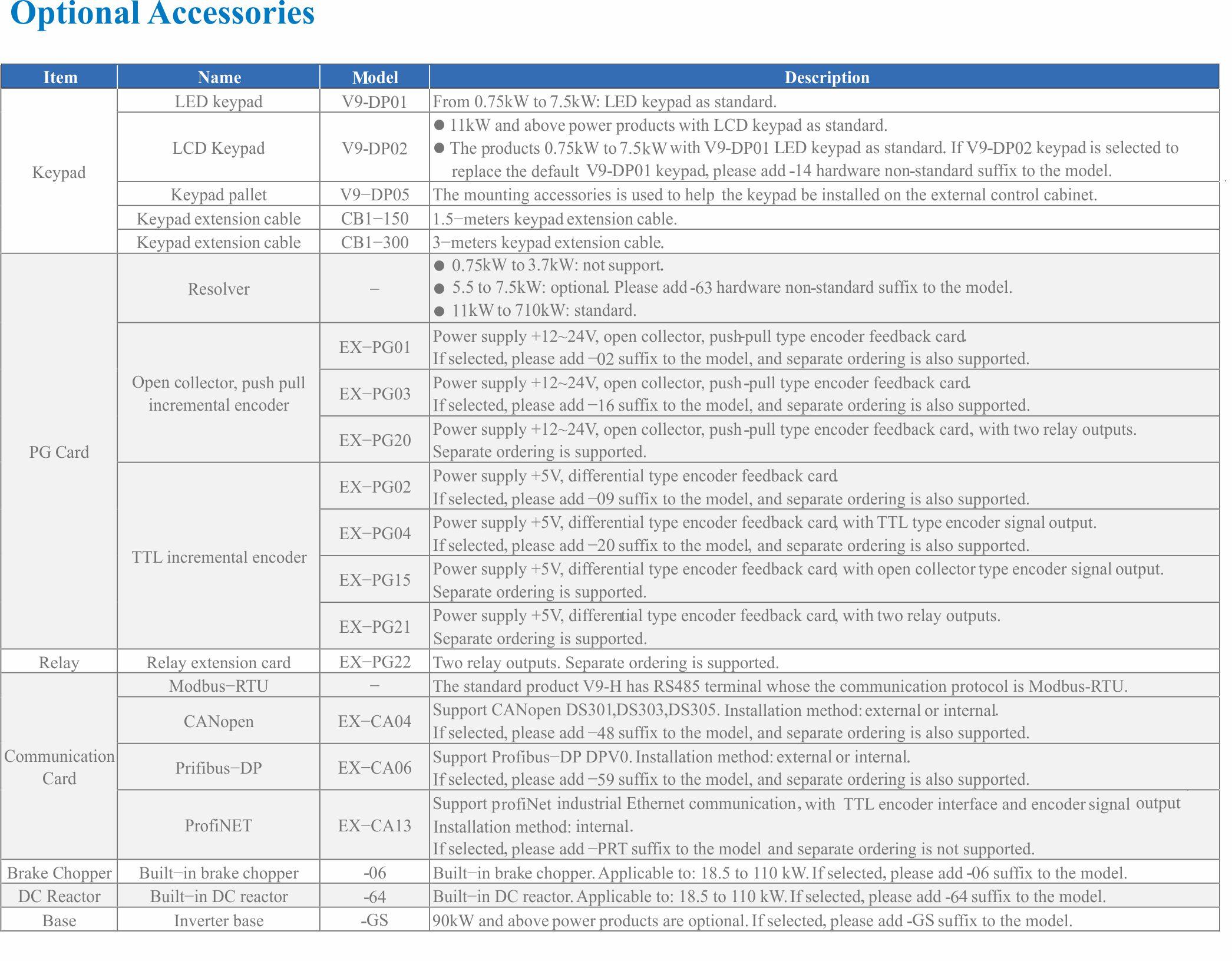

- Can provide various encoder interface cards
- Multiple communication cards available
PRODUCT FEATURES AND ADVANTAGES
Fast and accurate motor parameter self-learning, suitable for a variety of motors: synchronous/asynchronous/reluctance/high-speed/torque motor, V/F vector encoder closed loop integrated.
Asynchronous and non-inductive V/F control, 200% torque output at 0.25Hz in electric state, 200% torque output at 1Hz in power generation state.
Good voltage and current control, high speed, high frequency, deep field weakening, wave-by-wave current limiting, multiple protections.
Modular compact structure design, high power density；Support multiple encoders and multiple high-speed communication protocols.
Integrated drive and control, expandable PLC and motion control card；Multiple language keyboard, friendly interface, reliable and easy to use.

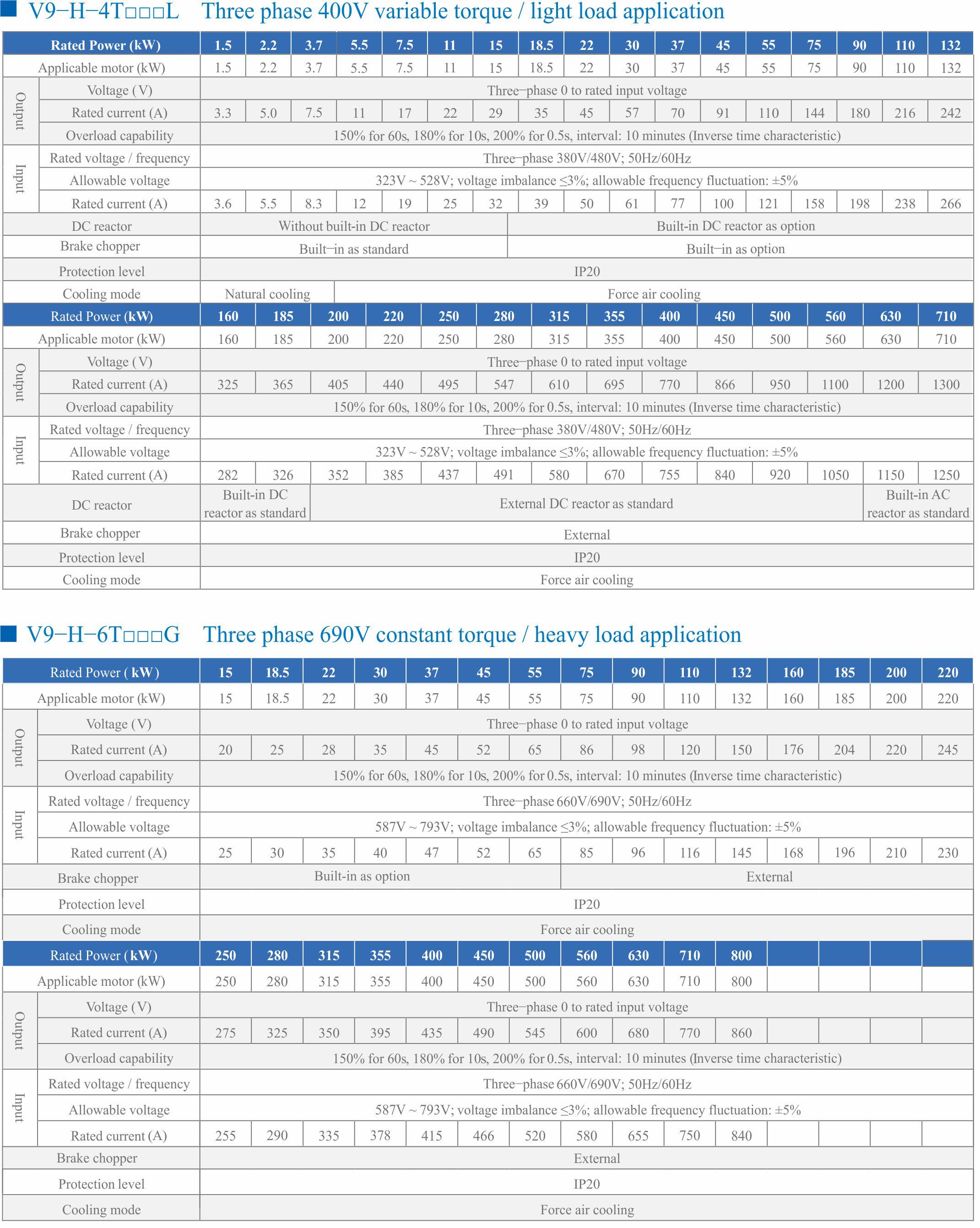

Specification Parameters
