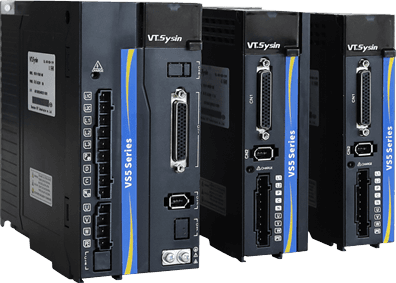

VS510 Series servo drive
The VS510 series is equipped with a new type of adjustment free function, breaking the common sense that servo drives cannot run smoothly without adjustment, and achieving instant use. The new advanced automatic tuning function can shorten installation time and fully utilize mechanical performance.
- Excellent drive response characteristics
- Enhanced vibration suppression function
- Multi-level filtering
- 3x overload
- Supports multiple encoders
- Resonance suppression
- Faster response
PRODUCT FEATURES AND ADVANTAGES
Excellent drive response characteristics
Significantly reduced setting time
Enhanced vibration suppression function
By adding and improving the vibration resistance function, the following performance can be improved, the setting time can be shortened, and the vibration (sound) during driving and the vibration of the mechanical front end during stopping can also be reduced.
Multi-level filtering
By using multi-level filters, the vibration suppression function can be improved, the setting time can be shortened, the corresponding speed can be increased, and the front-end vibration when the drive stops can be reduced. At the same time, it can effectively suppress the influence of external disturbances
3x overload
The Vs510 servo driver has a 3x overload capacity to support the motor with 3x torque overload.
Supports multiple encoders
Supports multiple encoders such as 67 signal incremental, 17 bit absolute, magnetic encoders, etc
Resonance suppression
In response to the positioning vibration phenomenon caused by the elastic link device between the load and the motor in the servo drive system, the notch filter parameters are reasonably allocated based on system information to eliminate vibration in the given position

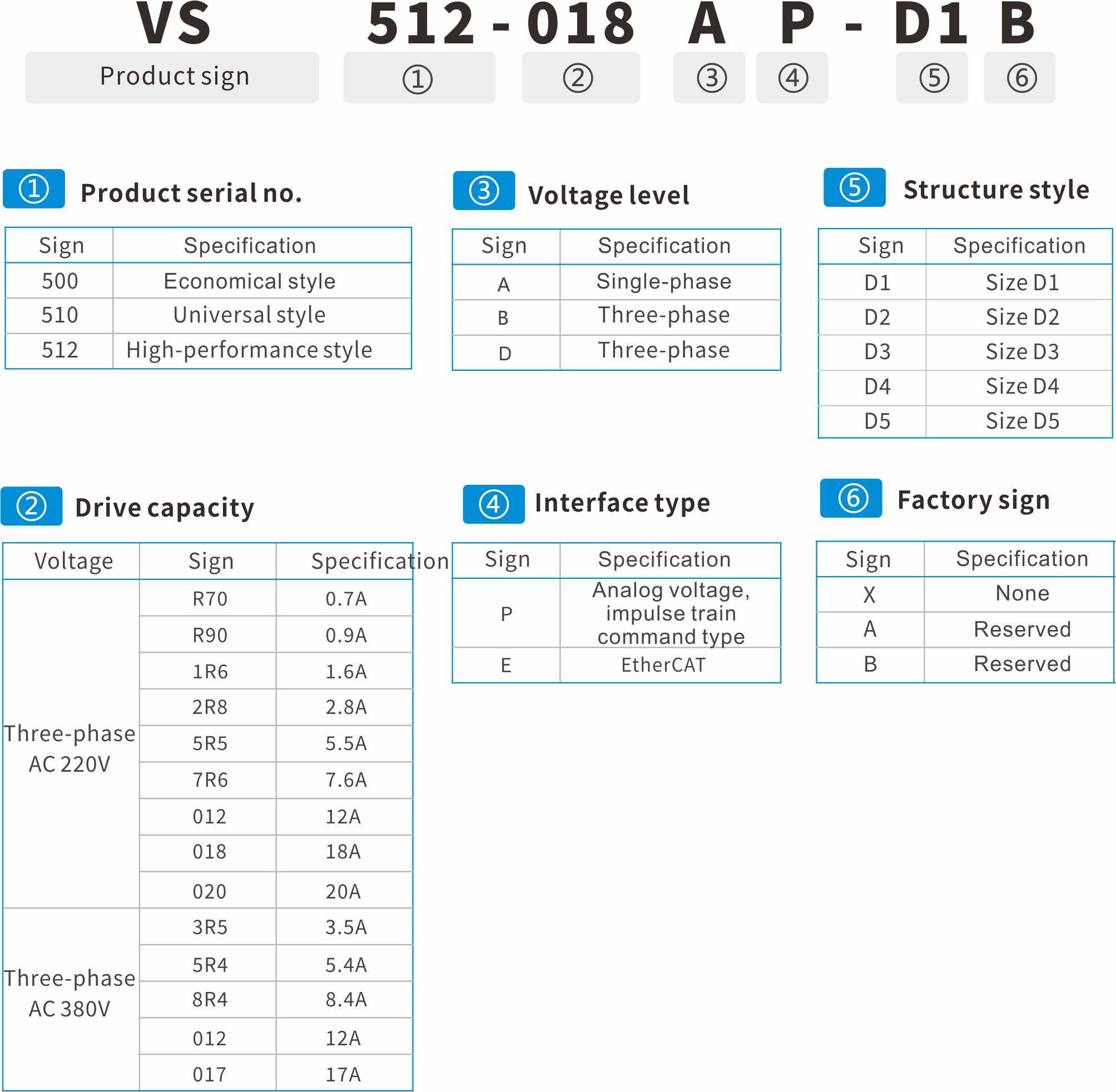

Specification Parameters
